465 Series Softail Shock

465 Series Softail Shock

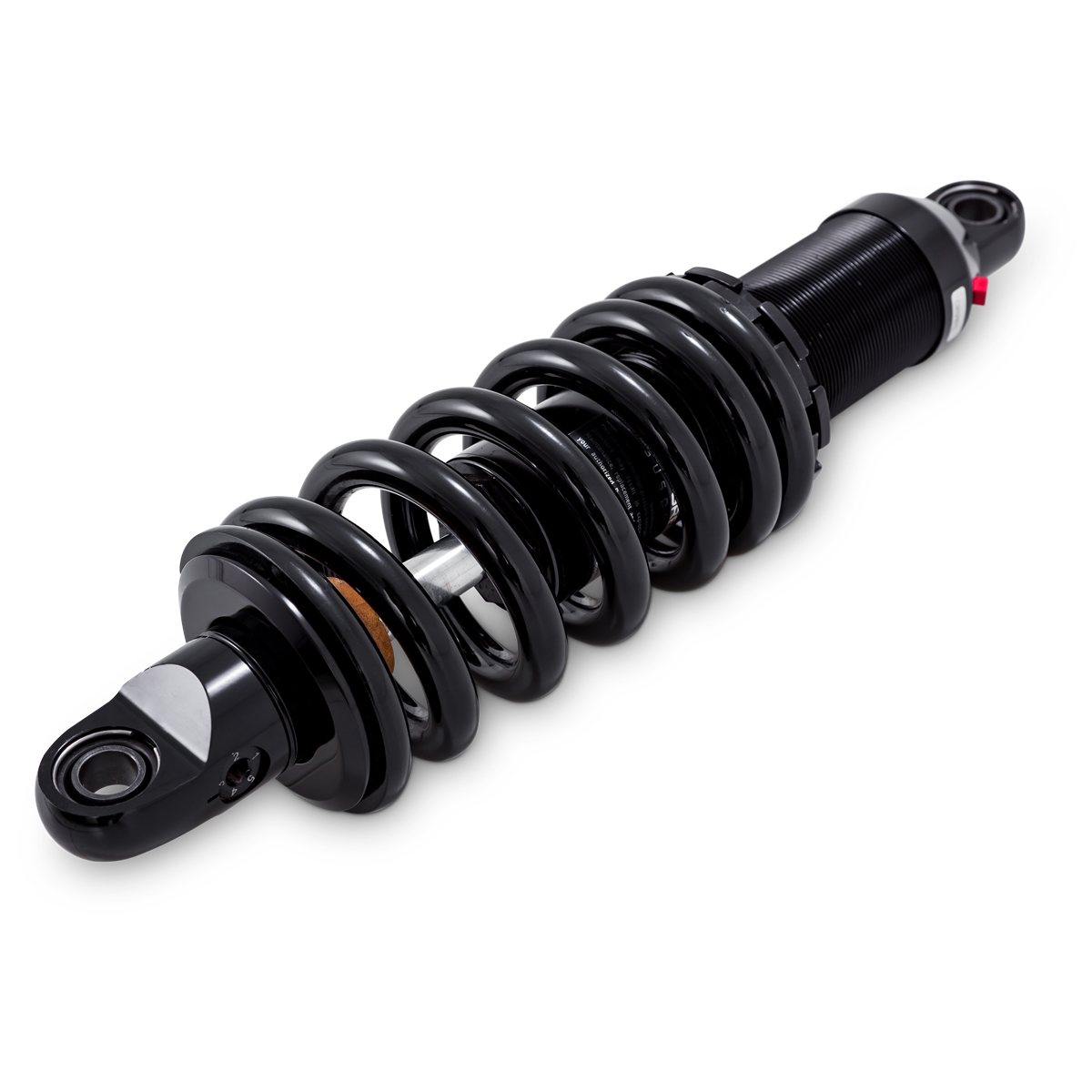

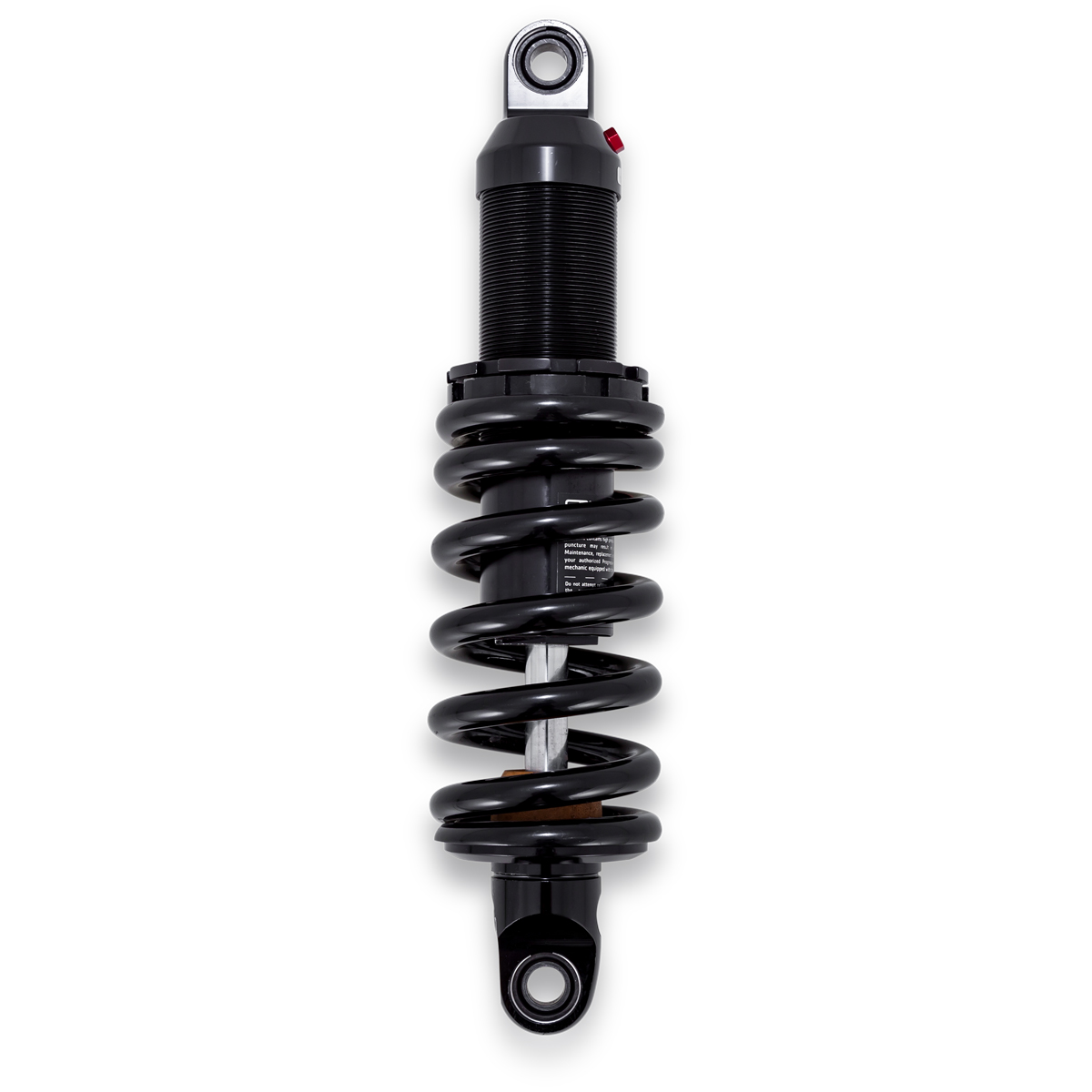

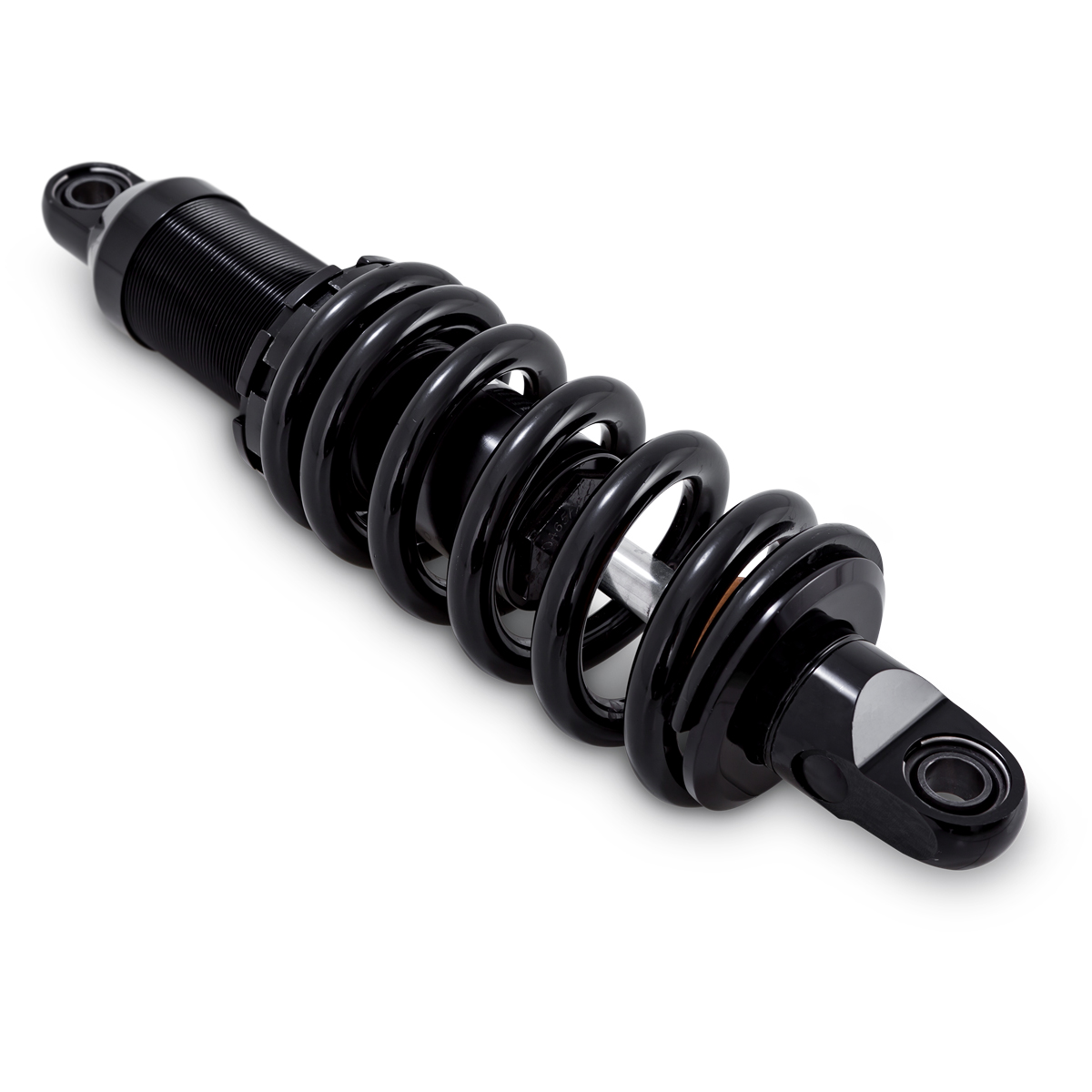

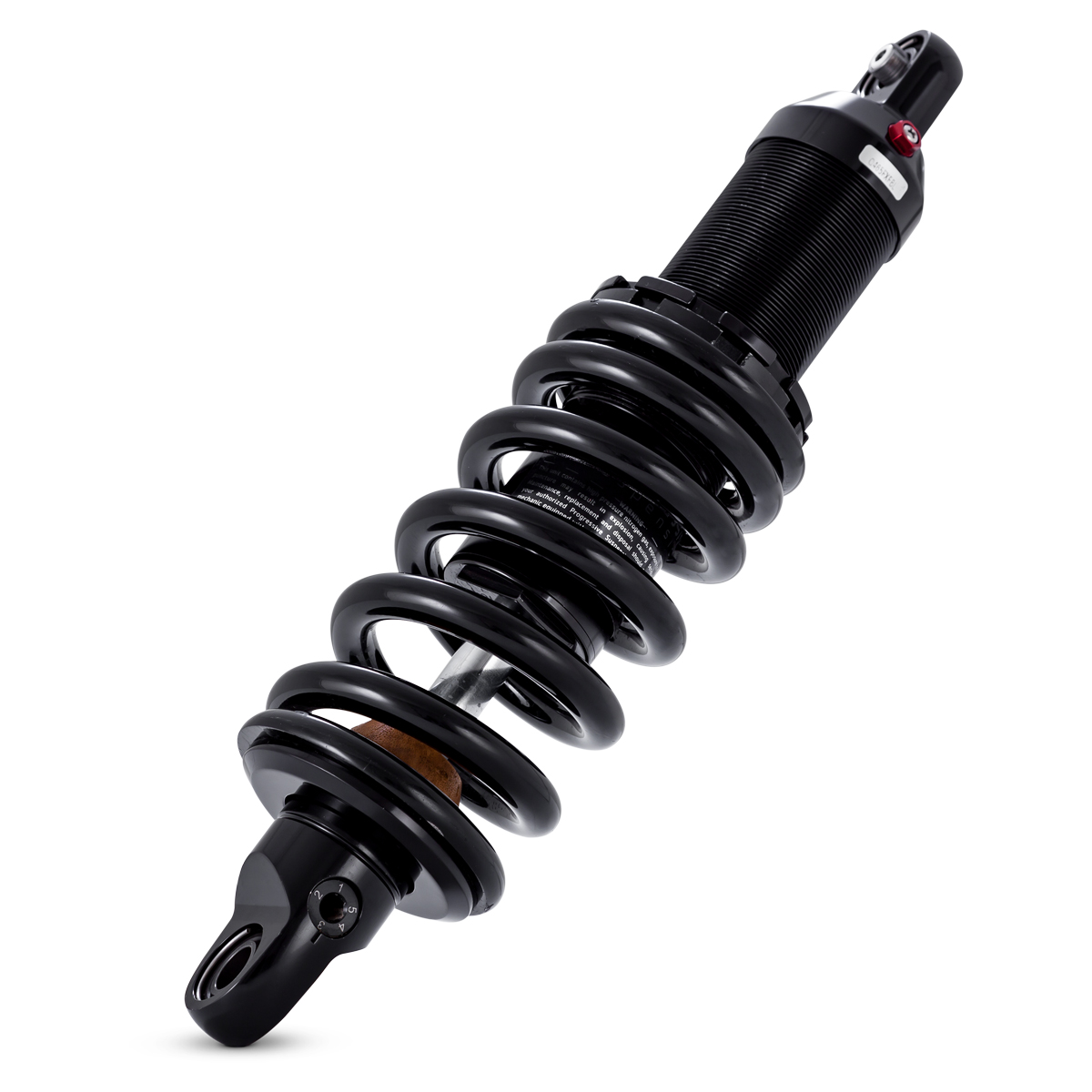

The 465 Series is a state of the art high pressure gas monotube shock design for the new Harley-Davidson M8 Softail models. It utilizes a large 46mm bore with deflective disc damping, threaded body and a 5 position rebound adjuster. The beefy 16mm hard chrome shaft rides on custom viton seals for a low friction and leak free life.

Available in 12.2", 12.6", 13.1" & 13.5" shock lengths with a 2:1 motion ratio in a Standard or Heavy-Duty spring rate featuring approximately 0.8”-1” ride height increments for M8 Softail Models. Each shock is hand-built, tuned and dyno’d and come with a Limited Lifetime Warranty.

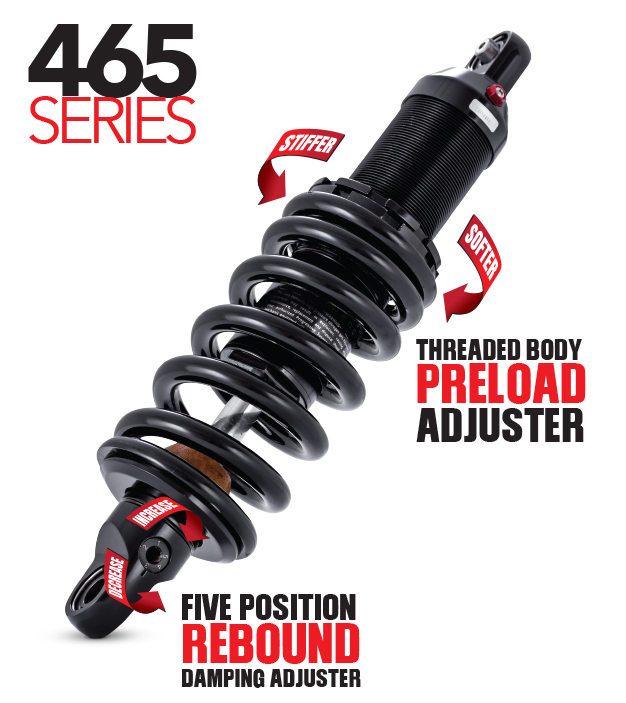

For a quick reference on preload and rebound adjustments of the 465 Series Shock refer to the image in the Gallery below.


At Progressive Suspension we always want to be sure that you get the perfect part for your ride. Please click the link below to select your ride so we can be sure we get you exactly what you need.

Select Your Ride  Select Your Ride

FROM: $747.95

Gallery

Learn About the Product
  • Details
  • Specifications
  • Notes
  • Product Warnings
Details
Each length changes the height at the axle approximately one inch.
Animations
Specifications
• Hard Anodized, 46mm bore, aluminum body
• Anodized aluminum shock mounting eye’s with spherical bearings (OE is rubber bushing / needle bearing)
• High pressure nitrogen, monotube design
• High performance deflective disc valving
• 16mm, precision ground, hard chrome rod
• 5 position rebound damping adjuster
• Threaded or RAP pre-load adjusters
• Improved damping characteristics and spring rates result in increased suspension compliance. This allows the rear suspension to more effectively absorb road irregularities, such as bridge abutments and longitudinal pavement cracks without the harshness associated with the OE suspension. Chassis stability is also improved for a more confidence inspiring ride. The 5 position rebound damping adjuster allows the rider to fine tune the shock for comfort and control.

·

Notes
Each length changes the height at the axle approximately one inch.
Installation Instructions
